When it comes to automotive performance, industrial engineering, or custom fabrication, the integrity of your gas flow system is paramount. The primary component that dictates how efficiently your engine or machine expels waste gases is exhaust tubing. Choosing the right material, diameter, and wall thickness can mean the difference between a high-performing system and one that is restricted, prone to leaking, or subject to premature failure. Understanding the nuances of these pipes is essential for anyone looking to build, repair, or upgrade their exhaust infrastructure.
Understanding the Basics of Exhaust Tubing
At its core, exhaust tubing is designed to facilitate the rapid and safe removal of high-temperature combustion gases. Unlike standard piping, which might be used for plumbing or structural purposes, automotive-grade tubing is engineered to withstand significant thermal expansion and vibration. The selection process typically centers on three main factors: material composition, tubing diameter, and the manufacturing process (mandrel vs. crush bending).

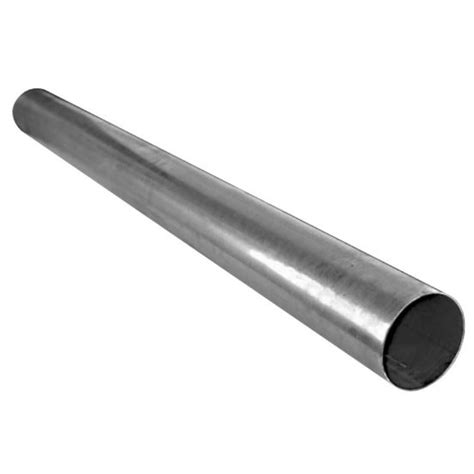

- Material Composition: Most systems utilize aluminized steel for cost-effectiveness or stainless steel for long-term corrosion resistance.
- Wall Thickness: Measured in gauges, the thickness determines the weight of the system and its ability to dissipate heat.
- Diameter: This is critical for maintaining exhaust gas velocity. Too large, and you lose torque; too small, and you create excessive backpressure.
Materials: Stainless Steel vs. Aluminized Steel
Deciding between stainless steel and aluminized steel is the most common dilemma for fabricators. Each material offers distinct advantages depending on your budget and environmental conditions.
| Material | Durability | Corrosion Resistance | Price Point |
|---|---|---|---|
| Aluminized Steel | Moderate | Low to Moderate | Budget-Friendly |
| 304 Stainless Steel | High | Excellent | Premium |
| 409 Stainless Steel | High | Good | Mid-Range |

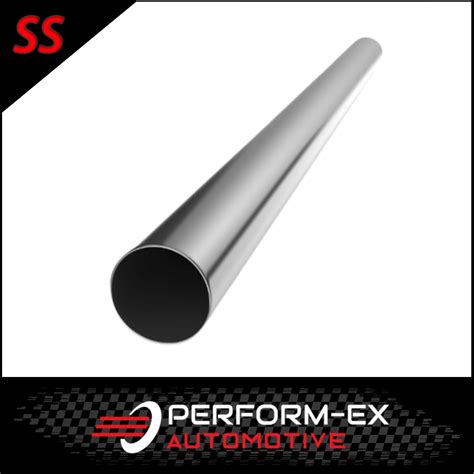

For vehicles driven in salty or humid climates, 304 stainless steel is the gold standard because it contains high levels of chromium and nickel, preventing rust even under extreme heat cycling. Conversely, if you are working on a budget-conscious street build, aluminized steel provides a decent lifespan provided it is kept away from harsh road salt.
The Importance of Mandrel Bending
One of the biggest mistakes DIY enthusiasts make is using standard “crush” bent tubing. In a crush-bent setup, the tubing is compressed during the bending process, which significantly reduces the internal diameter at the curve. This creates a bottleneck that limits flow and increases backpressure.

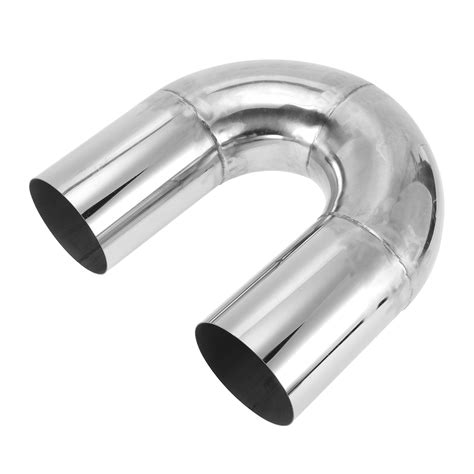

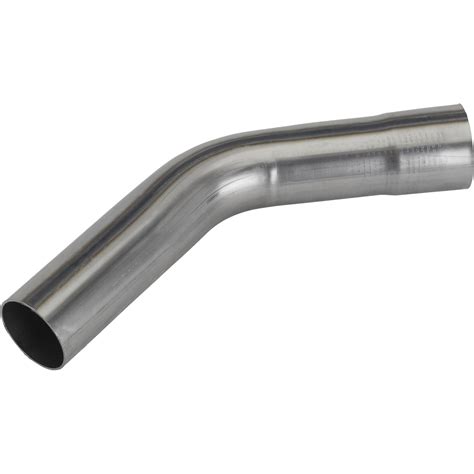

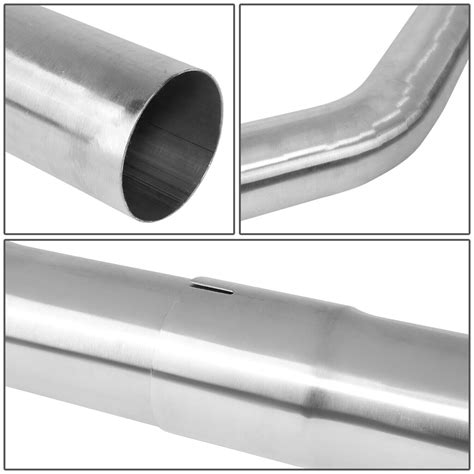

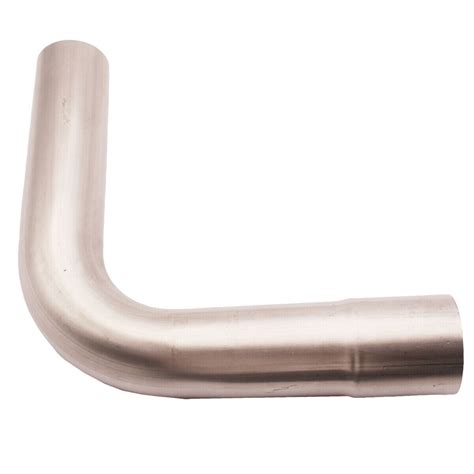

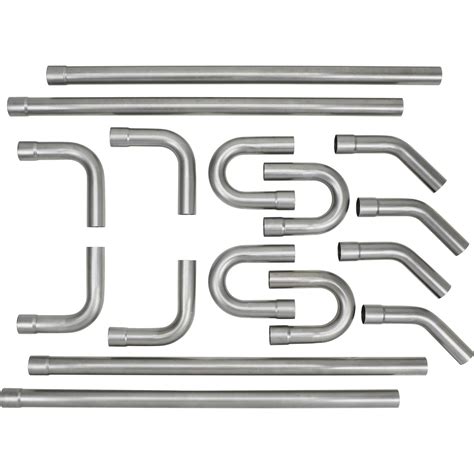

Mandrel-bent exhaust tubing, on the other hand, utilizes a solid rod (the mandrel) inserted into the tube during the bending process. This supports the walls from the inside, ensuring that the diameter remains constant throughout the entire arc. This is vital for maximizing horsepower and improving exhaust scavenging, especially in high-performance applications where gas speed is everything.
💡 Note: Always verify the outer diameter (OD) and wall thickness when purchasing tubing, as some manufacturers measure by inner diameter, which can lead to fitment issues during assembly.
Selecting the Right Diameter for Your Build
Optimizing exhaust flow is a delicate balancing act. Many beginners mistakenly assume that “bigger is always better,” but this is a common misconception. If the exhaust tubing diameter is too large for the engine’s displacement, the exhaust gas velocity slows down significantly. This loss in velocity leads to a loss of bottom-end torque, making the vehicle feel sluggish off the line.
To determine the ideal diameter, consider the following parameters:
- Engine Displacement: Larger engines require larger diameters to move a higher volume of air.
- RPM Range: Higher RPM engines generally benefit from larger diameters to handle the increased frequency of exhaust pulses.
- Forced Induction: Turbocharged engines often require larger tubing than naturally aspirated engines because the turbine creates an additional restriction that the exhaust system must compensate for.
Fabrication Tips for a Professional Finish

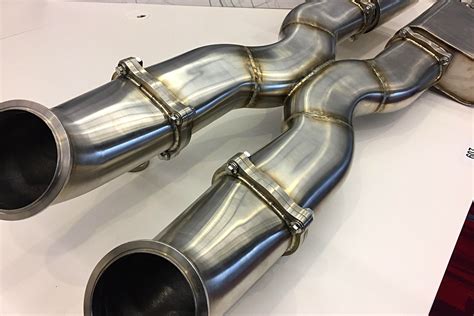

If you are planning to weld your own exhaust system, preparation is just as important as the welding itself. Clean the tubing thoroughly before starting; any grease, oil, or surface coating can lead to pinhole leaks in your welds. If you are working with stainless steel, consider using a back-purging technique to prevent oxidation on the inside of the weld, which can lead to stress cracks over time.
When cutting the exhaust tubing, use a horizontal bandsaw or a dedicated metal chop saw to ensure a square cut. Avoid using an angle grinder with a cutting wheel if possible, as it is difficult to maintain a perfectly straight edge, which is essential for achieving a tight gap when butt-welding sections together.
💡 Note: When planning your routing, ensure you maintain at least one inch of clearance between the tubing and any heat-sensitive components, such as fuel lines, wiring harnesses, or rubber bushings, to prevent fire hazards or component failure.
Maintenance and Longevity

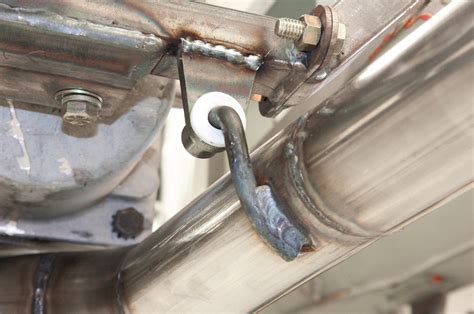

Even the highest-quality exhaust tubing requires occasional inspection. Over time, vibrations can cause bracket failures or stress fractures at weld joints. Periodically checking your hangers is a simple but effective way to prevent your system from sagging, which puts unnecessary strain on the manifold and headers. If you notice discoloration or signs of leaks near the flanges, address them immediately with new gaskets or weld repairs to ensure your engine continues to run at its peak potential.
Refining your vehicle’s performance and efficiency starts with the careful selection and installation of your exhaust system. By prioritizing material quality—such as choosing corrosion-resistant stainless steel—and ensuring smooth airflow through mandrel-bent components, you create a system that enhances both power and longevity. Matching the tubing diameter to your specific engine requirements will further ensure that you achieve optimal gas velocity and torque characteristics. Whether you are tackling a simple repair or a full custom build, keeping these technical considerations in mind will ensure a professional outcome that stands the test of time and performance expectations.
