Driving on a sweltering summer day with broken air conditioning is more than just uncomfortable; it can be downright dangerous. If you’ve noticed your car’s cabin air feeling warmer by the day, there is a high probability that your system has lost its refrigerant charge. Understanding how to find a auto AC leak is the first step toward getting your cool air back. While some leaks are obvious, others are microscopic, requiring a methodical approach to track them down. By learning how to inspect your system, you can save significant money on mechanic fees or determine if you need professional-grade equipment to solve the problem.
Understanding Why Your AC Leaks
Automotive air conditioning systems are designed to be sealed loops. Refrigerant circulates through the compressor, condenser, expansion valve, and evaporator, changing states from gas to liquid and back. Because this system operates under high pressure and is subjected to constant engine vibration, components eventually wear out. Common culprits for leaks include:
- Rubber O-rings: These seals harden and crack over time.
- Hose degradation: Rubber hoses can become porous, allowing refrigerant to seep out.
- Condenser damage: Located at the front of the car, it is susceptible to road debris.
- Compressor shaft seal: A common point of failure as the unit ages.
Methods for Detecting AC Leaks
To identify the source of the issue, you need to employ specific diagnostic techniques. Some methods are DIY-friendly, while others require specialized tools.
1. The Visual Inspection
Before buying expensive tools, perform a thorough visual check. Refrigerant oil often carries a dye or picks up dirt, leaving greasy, dark residue at the site of a leak. Look closely at all connection points, hose crimps, and the compressor housing. If you see oily buildup, that is a prime indicator of a leak.
2. Ultraviolet (UV) Dye Method

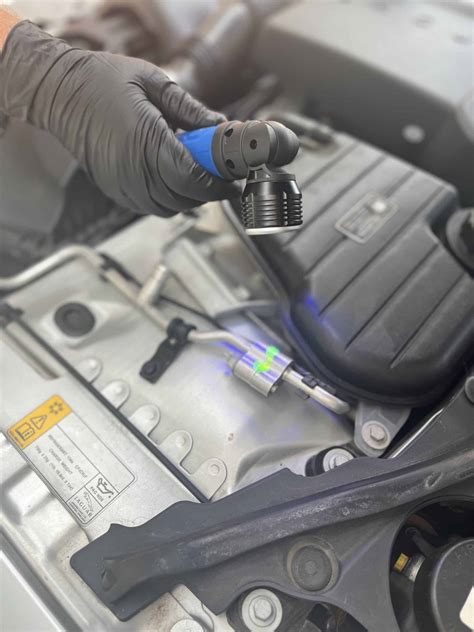

This is arguably the most effective way to find a leak. Most modern AC systems can be injected with a fluorescent UV dye. Once added, you run the AC for a short time and then use a UV light and yellow-tinted safety glasses to inspect the system. The leaking refrigerant will glow neon yellow or green, making even the smallest pinhole leaks easy to spot.
3. Electronic Leak Detector
If you prefer a high-tech approach, an electronic refrigerant sniffer is highly accurate. You move the probe of the device along the AC lines and components. When the sensor detects the chemical signature of the refrigerant, it will emit an audible beep or alarm. This tool is excellent for finding leaks in tight, hard-to-reach areas where a visual check might fail.
| Detection Method | Difficulty Level | Cost | Best For |
|---|---|---|---|
| Visual Inspection | Easy | Low | Large, obvious leaks |
| UV Dye | Moderate | Medium | Small, slow leaks |
| Electronic Sniffer | Easy | High | Precision pinpointing |
⚠️ Note: Always wear safety glasses and gloves when working on your AC system. Refrigerant is extremely cold and can cause severe frostbite if it contacts your skin during a sudden release.
Executing the Repair
Once you have successfully identified the leak, the repair process depends on the location. If the leak is at a hose fitting, simply replacing the O-ring and tightening the connection may resolve it. However, if the leak is in the condenser or evaporator, the damaged part must be replaced. After any repair, the system must be evacuated using a vacuum pump to remove moisture, followed by refilling the system with the manufacturer-specified amount of refrigerant and oil.
💡 Note: Do not use "stop-leak" products found in parts stores. These chemicals can gum up your compressor and damage expensive diagnostic equipment used by professional technicians later on.
Final Thoughts
Successfully diagnosing an AC leak requires patience and the right tools, but it is entirely manageable for the dedicated DIYer. By combining visual inspections with UV dyes or electronic detection tools, you can avoid the frustration of guessing games. Remember that an AC system is a pressurized environment; if you feel uncomfortable handling refrigerant or do not have the proper recovery equipment, it is always best to consult a professional. Keeping your system leak-free not only ensures a comfortable ride during the summer heat but also protects your compressor from premature failure, potentially saving you hundreds of dollars in major repair costs down the road.
