When you turn the key in a modern diesel engine, a complex sequence of electronic communication occurs in milliseconds to ensure optimal combustion. At the heart of this performance lies the Injector Control Pressure Sensor (ICP sensor), a critical component that acts as the eyes and ears for the Engine Control Module (ECM) regarding fuel delivery. If your vehicle is struggling with a rough idle, poor fuel economy, or sudden engine stalls, the ICP sensor is often the primary suspect that technicians investigate. Understanding how this sensor functions and how to troubleshoot its common failures can save you significant time, money, and frustration.
What is an Injector Control Pressure Sensor?

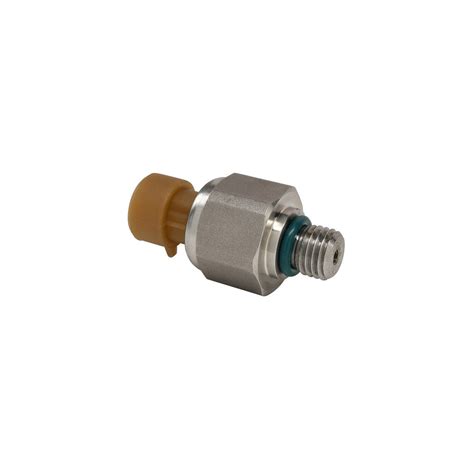

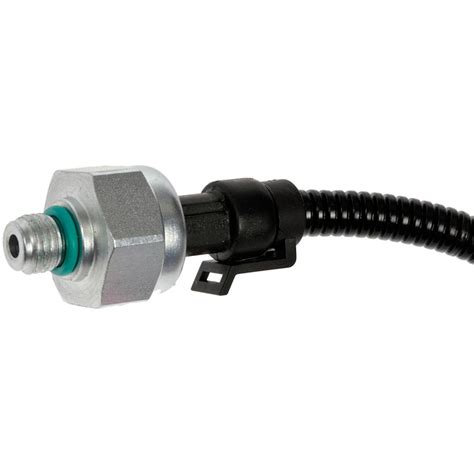

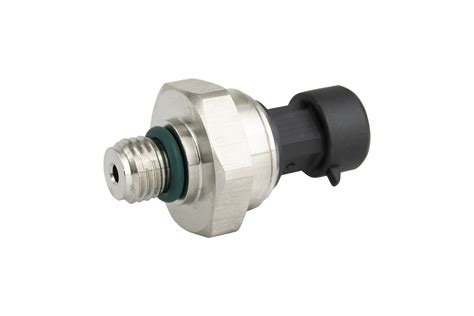

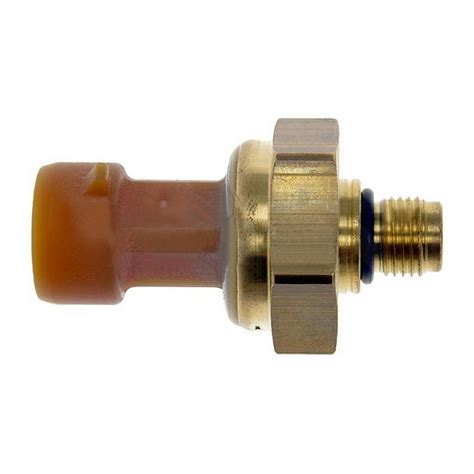

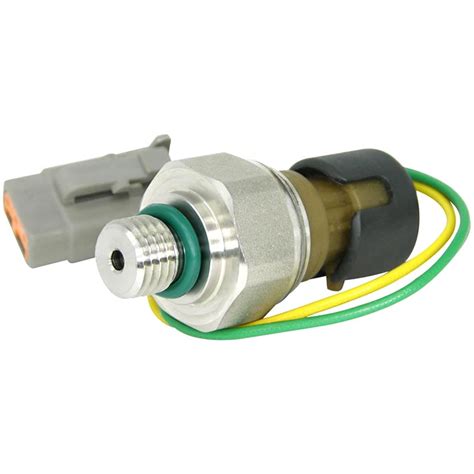

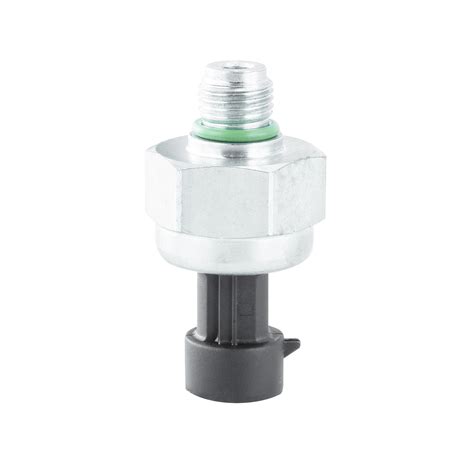

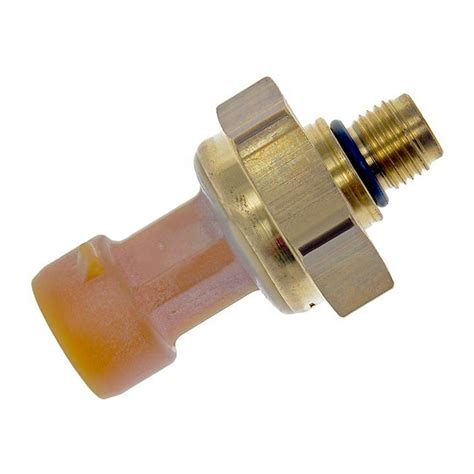

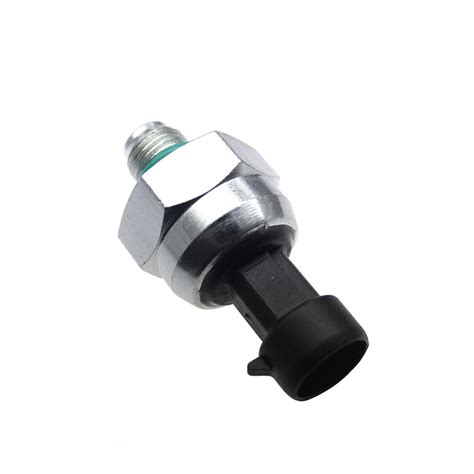

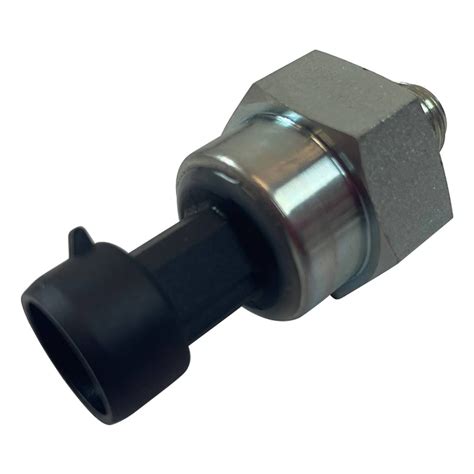

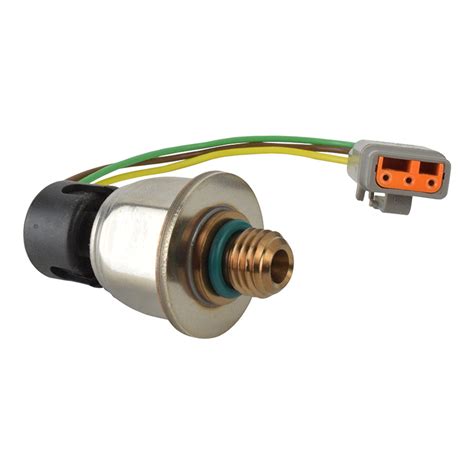

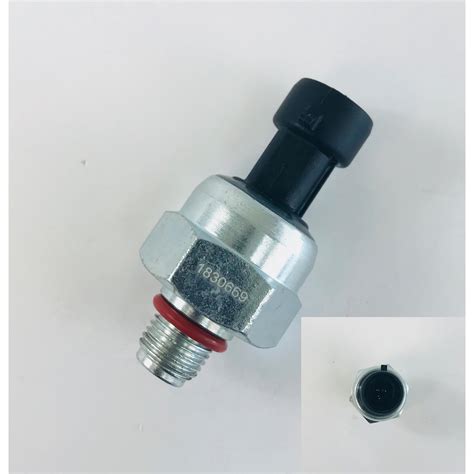

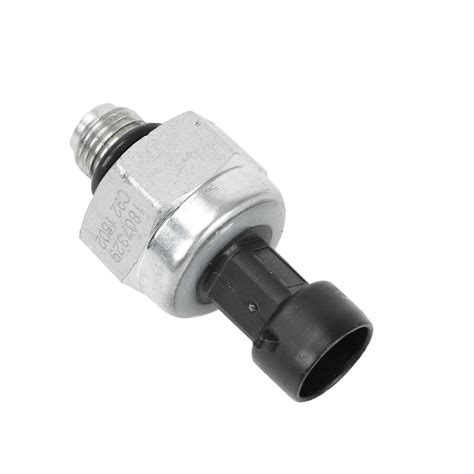

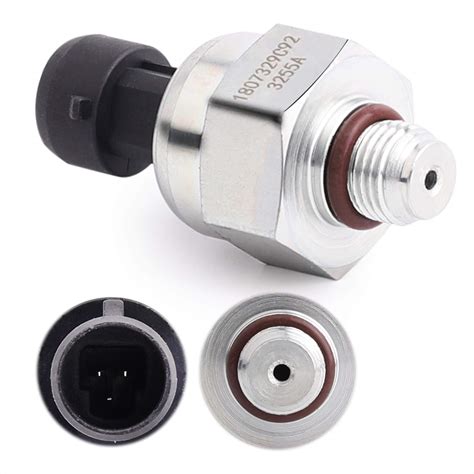

The Injector Control Pressure Sensor is responsible for monitoring the hydraulic pressure of the oil that operates the fuel injectors in HEUI (Hydraulically Actuated Electronically Controlled Unit Injector) systems, commonly found in engines like the Powerstroke 7.3L and 6.0L. By measuring the oil pressure, the sensor sends a feedback signal to the ECM, which then dictates how much oil pressure is required to fire the fuel injectors at the precise moment required for ignition.
Without an accurate reading from this sensor, the ECM defaults to a "safe mode" or may fail to start the engine entirely. Because the fuel injectors rely on high-pressure oil to push fuel into the combustion chamber, any discrepancy in the sensor’s reporting can lead to catastrophic imbalances in engine timing and power delivery.
Common Symptoms of a Failing Sensor
Identifying a faulty Injector Control Pressure Sensor early can prevent downstream damage to your fuel injectors and high-pressure oil pump (HPOP). If you notice any of the following symptoms, it is highly recommended to perform a diagnostic scan using an OBD-II tool to check for ICP-related trouble codes, such as P1280 or P1281.
- Hard starting or no-start conditions: The engine cranks but fails to build enough pressure to fire the injectors.
- Rough idling: The engine may shake or fluctuate in RPM as the ECM struggles to maintain steady injection pressure.
- Stalling under load: Sudden drops in power when accelerating, often caused by erratic pressure signals.
- Poor fuel efficiency: Inaccurate sensor readings can lead to improper fuel delivery, wasting diesel.
- Visible oil in the sensor connector: This is a clear indicator that the internal diaphragm of the sensor has failed, allowing oil to leak into the wiring harness.
| Symptom | Likely Cause | Severity |
|---|---|---|
| Engine cranks, no start | Total sensor failure or open circuit | High |
| Rough, uneven idle | Erratic voltage output | Medium |
| Oil leaking at connector | Diaphragm puncture | High |
| Check engine light | Out-of-range signal | Medium |
Troubleshooting and Diagnostic Steps
Before rushing to replace the Injector Control Pressure Sensor, follow a systematic approach to confirm that the sensor is indeed the source of the malfunction. Often, wiring issues or connector corrosion can mimic a failed sensor.
1. Visual Inspection: Check the wiring harness and the electrical connector for any signs of chafing, corrosion, or oil contamination. If you find oil inside the plug, it is a definitive sign that the sensor must be replaced.
2. Check Voltage Readings: Using a multimeter, measure the reference voltage. A typical sensor should receive a 5V reference from the ECM and return a signal voltage—usually between 0.2V and 4.5V depending on the engine speed and load.
3. Scan Tool Analysis: Use an advanced diagnostic scanner to monitor the "ICP Desired" versus "ICP Actual" values. If the "Actual" pressure fluctuates wildly or stays stuck at a fixed number despite engine load changes, the sensor is likely faulty.
⚠️ Note: Always disconnect the batteries before performing electrical diagnostics on the sensor harness to prevent shorting out the ECM.
Steps to Replace the Sensor
Replacing the Injector Control Pressure Sensor is a manageable task for many DIY enthusiasts, provided you have the right tools and patience. Accessing the sensor can be the most difficult part, as it is often tucked away behind high-pressure oil lines or near the turbo assembly.
- Preparation: Allow the engine to cool completely. Clean the area around the sensor thoroughly to prevent dirt from entering the high-pressure oil system.
- Removal: Disconnect the electrical pigtail. Use a dedicated deep-well socket designed for ICP sensors to unscrew the old unit. Be careful of any residual oil that may spill out.
- Installation: Ensure the threads are clean and free of debris. Install the new sensor by hand first to prevent cross-threading, then torque it to the manufacturer’s specified settings.
- Verification: Reconnect the wiring harness, start the engine, and monitor the pressure data with your scan tool to ensure the readings are stable and within the expected range.

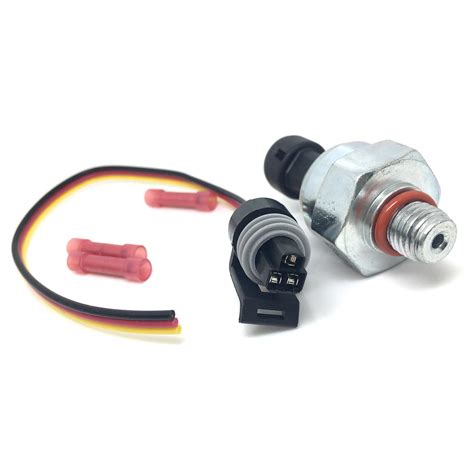

⚠️ Note: If you discover oil in the wiring pigtail, it is highly recommended to replace the pigtail or clean it thoroughly with electrical contact cleaner, as oil can cause high resistance and false readings.
Long-Term Maintenance and Reliability
While the Injector Control Pressure Sensor is a wear item, you can extend its lifespan by maintaining clean engine oil. Because the HEUI system uses engine oil to actuate injectors, contaminated oil—filled with soot or metallic particulates—can damage the sensor's internal diaphragm over time. Regular oil changes and using high-quality filtration are the best insurance policies for your sensor and your entire injection system.
Furthermore, be mindful of aftermarket performance tuners. These devices often increase the "Desired" ICP pressure to squeeze more horsepower out of the engine. While this is effective for racing, it places significantly more stress on the sensor, the high-pressure oil pump, and the injectors, leading to premature failure of these components. If you modify your engine, keep a closer eye on your sensor data to catch early warning signs of fatigue.
Ultimately, keeping your diesel engine running smoothly relies on the integrity of its electronic sensors. The Injector Control Pressure Sensor serves as a vital bridge between hydraulic mechanical action and electronic oversight. By recognizing the symptoms of failure, knowing how to interpret diagnostic data, and performing timely maintenance, you ensure that your engine maintains its power, efficiency, and reliability for years to come. Whether you are performing a quick sensor swap or investigating a deeper electrical issue, always prioritize high-quality replacement parts and precision in your installation to keep your vehicle performing at its peak.
