In the relentless pursuit of engine efficiency and raw power, automotive engineering has constantly evolved to overcome the physical limitations of internal combustion. One of the most significant advancements in forced induction technology is the Variable Turbine Geometry Turbocharger (VTG). Unlike traditional fixed-geometry turbochargers, which often struggle with the trade-off between low-end responsiveness and high-end power, VTG technology provides a dynamic solution that adjusts to the engine's real-time demands. By altering the angle of the turbine vanes, this sophisticated component ensures optimal performance across a wide spectrum of engine speeds, effectively bridging the gap between small, quick-spooling chargers and large, high-output units.
Understanding the Mechanics of Variable Turbine Geometry

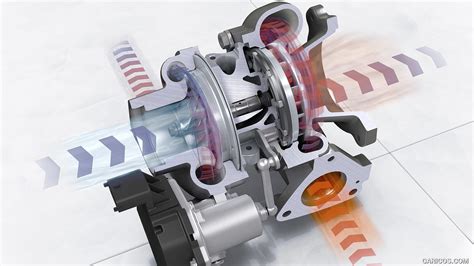

To grasp how a Variable Turbine Geometry Turbocharger operates, one must first look at the design of the turbine housing. In a standard turbo, the flow path of exhaust gases is static, meaning the turbine speed is entirely dependent on exhaust volume. At low RPMs, this results in the dreaded "turbo lag" because the engine isn't producing enough gas to spin the turbine quickly. Conversely, at high RPMs, the system can become a bottleneck, restricting exhaust flow.

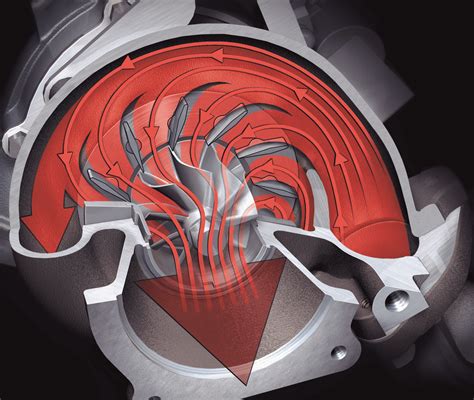

The VTG system solves this by incorporating a ring of adjustable vanes within the turbine housing. These vanes act like a shutter or a set of blinds. Here is how they influence performance:
- At Low RPM: The vanes close to a narrower angle. This increases the velocity of the exhaust gas hitting the turbine wheel, forcing it to spin faster even at low flow rates, which eliminates lag and boosts torque.
- At High RPM: The vanes open to a wider angle. This reduces backpressure and allows for maximum exhaust flow, preventing the engine from choking and enabling the turbo to sustain high horsepower levels.
This dynamic adjustment is typically managed by an electronic control unit (ECU) or a pneumatic actuator that fine-tunes the vane angle based on throttle position, engine load, and intake manifold pressure. The result is a seamless power delivery that makes the vehicle feel significantly more responsive and powerful.
Key Benefits of VTG Technology
The primary advantage of a Variable Turbine Geometry Turbocharger is the elimination of compromise. Drivers no longer have to choose between a turbo that is good for stop-and-go city traffic and one designed for high-speed highway merging. The system offers several distinct advantages for modern high-performance and fuel-efficient engines:
- Improved Fuel Economy: By optimizing boost pressure across the entire rev range, engines can operate more efficiently, often allowing for smaller displacement engines to perform like much larger naturally aspirated ones.
- Enhanced Torque Curves: Drivers experience a flatter, more usable torque curve, meaning the engine pulls strongly even at lower speeds.
- Reduced Emissions: Faster boost pressure buildup allows for cleaner combustion and helps the engine reach optimal operating efficiency more quickly.
- Simplified System Integration: Because one turbo does the job of two, manufacturers can reduce the complexity of the exhaust and intake plumbing.
⚠️ Note: Variable Turbine Geometry systems are predominantly found on diesel engines due to the lower exhaust gas temperatures. While they are increasingly common in gasoline engines, they require high-heat-resistant materials like Inconel to survive the extreme temperatures of petrol combustion.
Comparison of Turbocharger Architectures
When evaluating the different types of forced induction systems, it becomes clear why many manufacturers are gravitating toward VTG designs. The following table illustrates the performance characteristics of various systems:
| Feature | Fixed Geometry | Twin Turbo | Variable Turbine Geometry |
|---|---|---|---|
| Responsiveness | Low (High Lag) | High | Excellent |
| Complexity | Low | High | Medium |
| Efficiency | Moderate | Moderate | High |
| Cost | Low | High | Medium-High |
Maintenance and Durability Considerations
While the performance gains are substantial, the complexity of a Variable Turbine Geometry Turbocharger means that maintenance is paramount. The internal mechanism responsible for moving the vanes can become susceptible to "sooting up" or carbon buildup, especially if the vehicle is frequently driven at low speeds or only for short distances. This buildup can cause the vanes to stick, leading to boost spikes or limp-home mode errors.
To ensure longevity, consider the following best practices:
- Use High-Quality Oil: Turbochargers rely on oil for lubrication and cooling. Always stick to the manufacturer’s recommended intervals and oil grades.
- Regular Highway Driving: Periodically driving the vehicle at highway speeds under load helps the exhaust temperatures reach levels that can burn off carbon deposits inside the turbine housing.
- Cool Down Periods: Allow the engine to idle for a minute before shutting it down after a hard drive to prevent oil "coking" in the turbo bearings.
⚙️ Note: If you notice a sudden lack of power or a check-engine light related to boost pressure, the issue may not be the turbocharger itself, but rather the vacuum lines or the electronic actuator controlling the vanes. Always perform a diagnostic scan before assuming the turbine unit is faulty.
Future Outlook
As the automotive industry shifts toward electrification, the role of the Variable Turbine Geometry Turbocharger is also evolving. We are seeing a trend toward hybridization, where electric compressors work in tandem with VTG units to provide near-instantaneous boost. By combining the immediate torque of an electric motor with the high-RPM efficiency of a variable-geometry turbine, engineers are creating power plants that are more potent and environmentally friendly than ever before. This synergy suggests that even in a world moving toward batteries, the internal combustion engine—refined by advanced turbo technology—will remain a vital component of the transportation landscape for many years to come.
The adoption of this technology underscores a broader shift in automotive design: the focus is no longer just on adding more power, but on extracting the maximum amount of work from every drop of fuel. Through the precision movement of turbine vanes, these systems have successfully transformed the driving experience, turning engines that were once peaky and unresponsive into smooth, effortless powerhouses. As materials science continues to improve, enabling these units to handle even higher temperatures and pressures, we can expect them to become even more compact and reliable, solidifying their place as a cornerstone of modern engine architecture. Whether you are driving a commercial diesel truck or a high-performance sports car, the presence of variable geometry signifies a commitment to intelligent engineering and superior vehicle dynamics.
